Loctite® DRI 2020™ / Brass-Loc™

ND Industries IS PROUD TO BE A HENKEL AUTHORIZED PRE-APPLIED PROCESS CENTER.

Process Overview

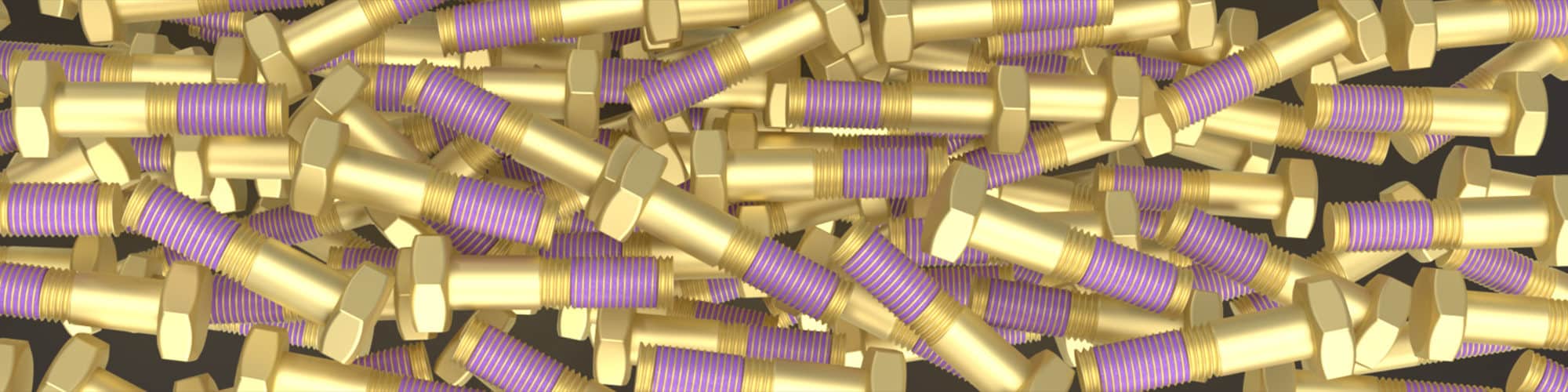

LOCTITE® DRI 2020™ / Brass-Loc™ is a low strength, water-based, pre-applied adhesive/sealant coating for threaded fasteners and fittings. As a pre-applied film, the product is dry-tothe-touch and remains an inert coating until assembly. During assembly of the fitting/fastener, a microencapsulated activator is released, intiating the curing process. The coating fills all the voids in the threads and cures to securely lock and seal the assembly. The product can be applied using automatic or semi-automatic equipment. LOCTITE® DRI 2020™ is designed for sealing brass fittings against a range of typical fluids such as motor oils and water/glycol solutions.

Document Links

SDSSDS TDSTDS Request a Quote or SampleRequest a Quote or Sample

How it works

Customer parts sent to ND Industries undergo the Loctite Dri 2020l / Brass-Loc pre-application process whereby dry film lubricants are coated onto fasteners and assemblies in bulk. Completed fasteners are packaged and returned to the customer. Parts arrive ready for assembly or for storage until needed. Processed parts have a very long shelf life due to the inert nature of the materials used, however re-certification of parts should take place to confirm other external factors have not compromised performance.

Eco-friendly

Dri 2020 / Brass-Loc is a water based threadlocker / sealant.

Long Shelf-life

Parts pre-coated with Dri 2020 / Brass-Loc can be stored for up to 4 years before use.

Chemical Resistant

The inert nature of Dri 2020 / Brass-Loc allows it to resist a wide range of chemicals and fluids including: Motor Oil, Water/Glycol, Diesel Fuel, Dextron III, Hydraulic Steering Fluid and more.

Corrosion Resistant

Dri 2020 / Brass-Loc processing inhibits corrosion between brass mating fasteners which prevents seizing and allows for easy removal.

Typical Performance of Cured Material

Product	Breakloose Torque 3/8 x 16 nuts and bolts	Prevail Torque 3/8 x 16 nuts and bolts
Loctite DRI 2020 / Brass-Loc	7.9 (Nm) / 70 (lb.in)	1.1 (Nm) / 10 (lb.in)

Applications

Applications include rear axle filler plugs, bearing adjuster nuts, pressure gauges and sensors, brake fittings, pipe fittings, and compressor pipe plugs. Other devices that this product is designed for includes; cable connectors, screws for plastic assemblies, adjustment screws, overhead fire sprinklers, shower heads, and door closure hardware. This product is typically used in applications with an operating range of -54 °C to +150 °C.

Material Characteristics

Product	Description	Appearance	Chemical Type	Application	Shelf Life
Loctite DRI 2020 / Brass-Loc	This is a low strength, water-based, pre-applied adhesive/sealant coating for threaded fasteners and fittings.	Purple	Methacrylate ester	Threadlocker	4 Years

Compatible Fasteners

External Threads:	Internal Threads:	Rivets:
Banjo Bolts, Hex Bolts, Flange Bolts, Wheel Bolts, Machine Screws, Cap Screws, Wood Screws, Sheet Metal Screws, Self Drilling Screws, Shoulder Bolts, Fully Threaded Studs, Double Ended Studs, Singled Ended Studs, Press-In Captive Studs, Carriage Bolts, Lag Bolts, Socket Screws, Set Screws, Eye Bolts, Eye Lags, J-Bolts, U-Bolts, Elevator Bolts, Hangar Bolts, Perforated Base Studs, Through Hole Weld Studs.	Flange Nuts, Hex Body Clinch Nuts, Prevailing Torque Nuts, Floating Nuts, Hollow Bolts, Insert Nuts, Lock Nuts, Weld Nuts, Barrel Nuts, Chicago Bolts, Jam Nuts, Wing Nuts, Square Nuts, Self-Locating Projection Weld Nuts (WN/WNS), Spot Weld Nuts, Projection Weld Nuts, Bridge Spot Weld Nuts, Tab Spot Weld Nuts, Square Projection Weld Nuts, Flange Weld Projection Nuts, Stamped Flange Weld Nuts, Spot Weld Cage Nuts.	Blind Rivets, Break Stem Open Rivets, Closed-End Rivets, Easy-Entry Rivets, Grip Tite™ Rivets, High-Retention Rivets, High-Strength Rivets, Load Spreading Rivets (lsr), Micro Rivets, Multi-Grip Rivets (mgr), Open-End Rivets, Pull-Thru Rivets, Soft-Set Rivets, Tri-Fold Rivets, Ultra-Grip Rivets, Vgrip® Rivets, Grooved Rivets, Peel Rivets, Steel T Rivets, TVD Rivets, Interlock Rivets, Klik-Lok Rivets, Bulbing Rivets, Domed and Flat Head Solid Rivets, Low-Profile Domed Head Solid Rivets, Countersunk Head Solid Rivets, Mil. Spec Solid Rivets.

Don’t see your parts on this list? We process thousands of different types of fasteners and depending on the quantity will gladly look at whether we can accommodate yours as well.

Specifications

Particular formulations of Loctite Pre-Applied Vibra-Seal (Dri-Seal) meet or exceed the performance requirements of the following specifications and/or standards:

Spec For	Spec Number

Safety & Technical Data Sheets

Process Name	Material	Safety Data Sheet (Supplied)	Technical Data Sheet (Applied)
Loctite DRI 2020 / Brass-Loc	2020 (DRI 2020)	Loctite DRI 2020 / Brass-Loc - SDS	Loctite DRI 2020 / Brass-Loc - TDS

Increase product quality while saving time and money with Pre-Applied adhesives and sealants.
